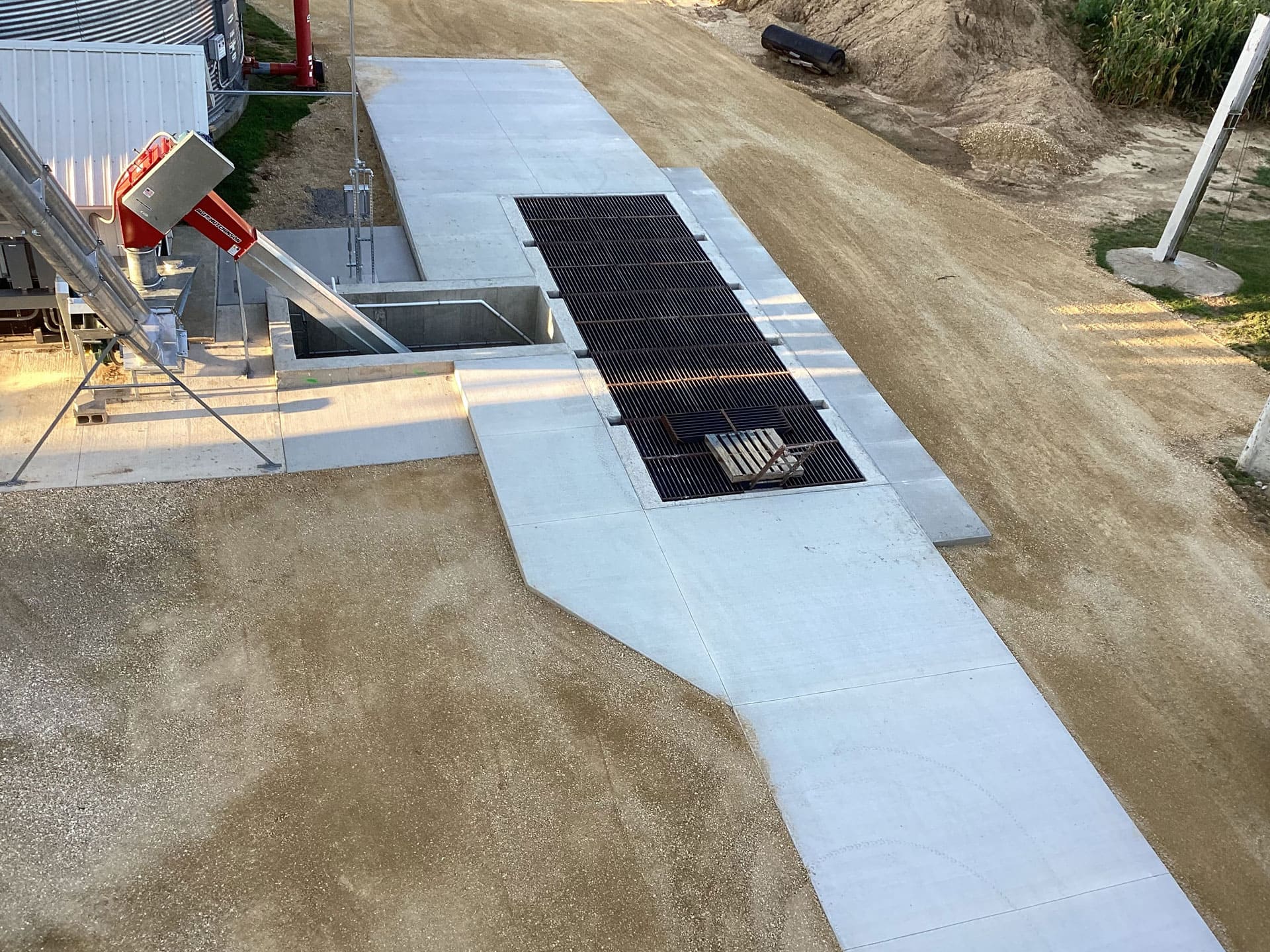

Trailer Length Grain Dump Pit

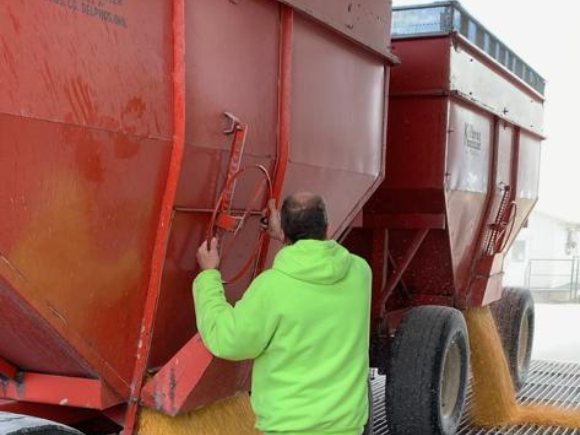

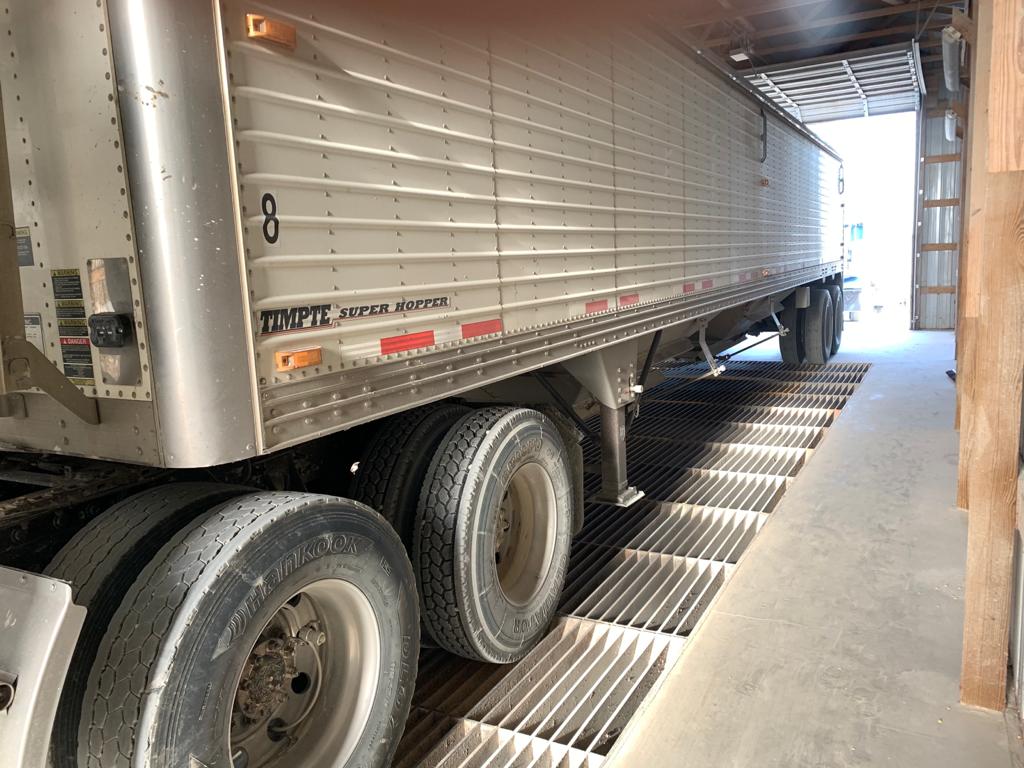

Our grain dump pit is ideal for anyone wanting to speed up the unloading process with large wagons or semi-trailers. This hopper allows the driver to unload the entire wagon or trailer in minutes while the conveyor or grain leg unloads the hopper. With this quick process you are able to get back to the field quicker than ever before. This system allows the two hoppers of the semi-trailer to be dumped simultaneously, which allows you to only have to get out of your truck once to dump both hoppers.

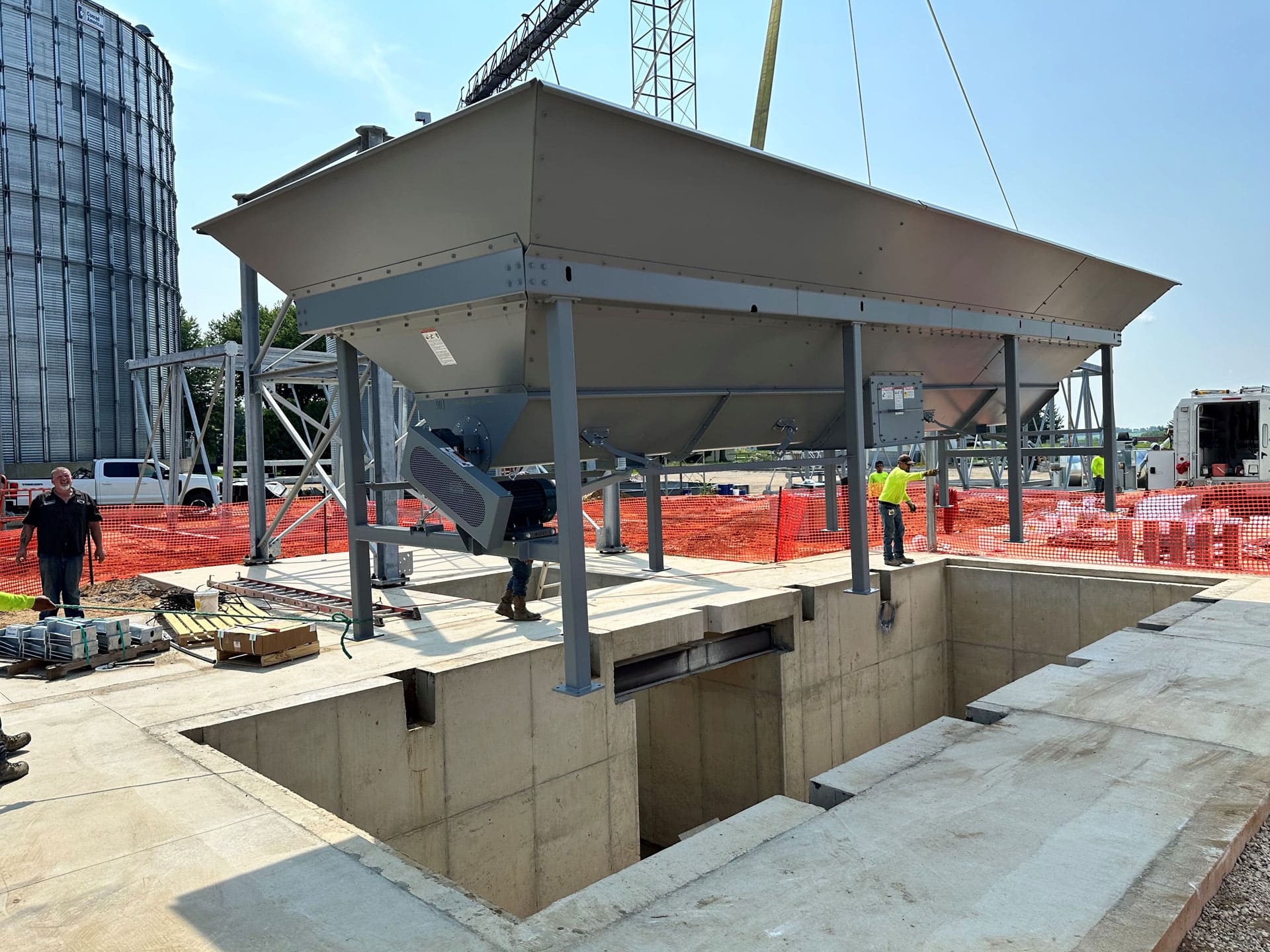

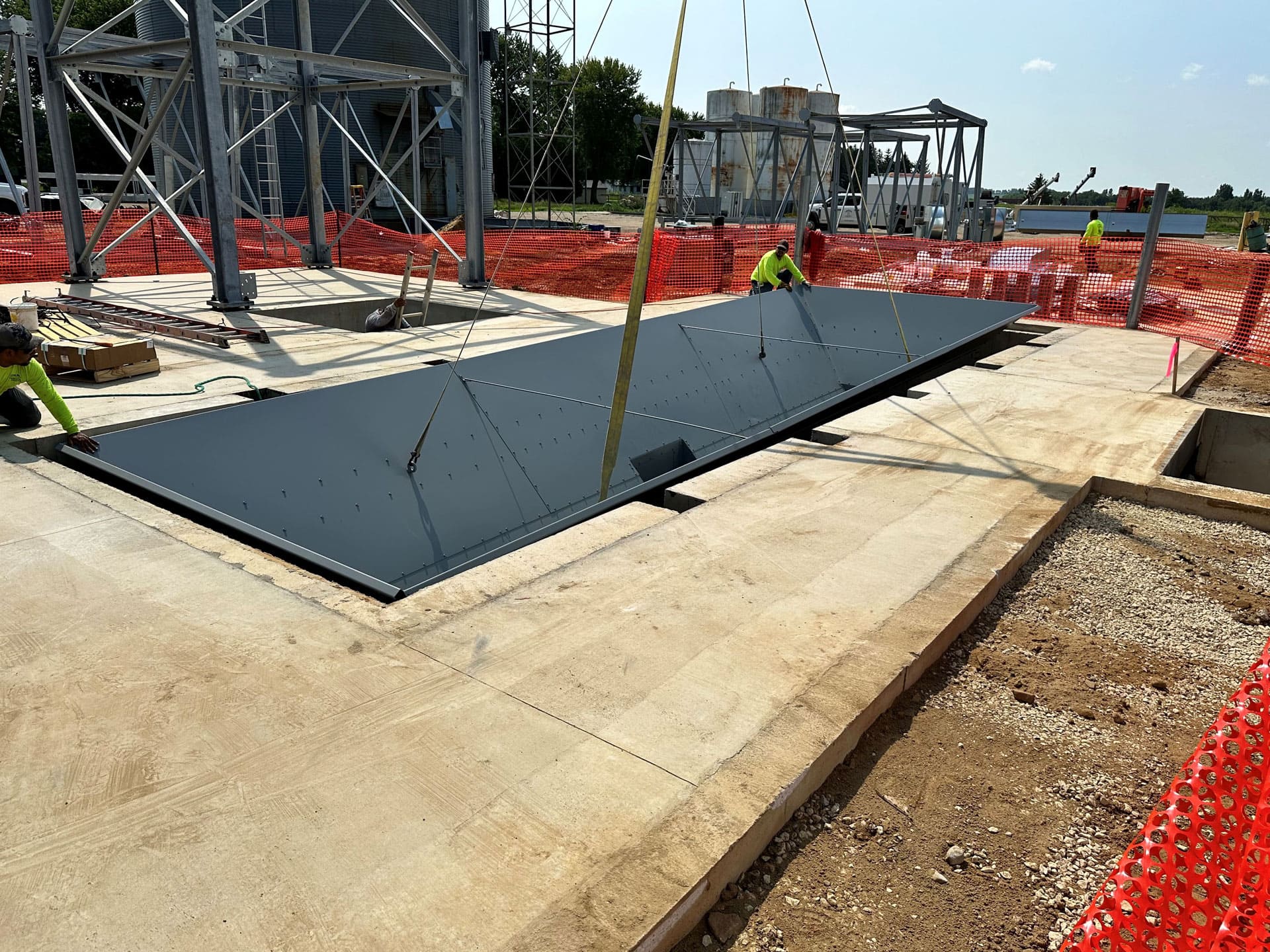

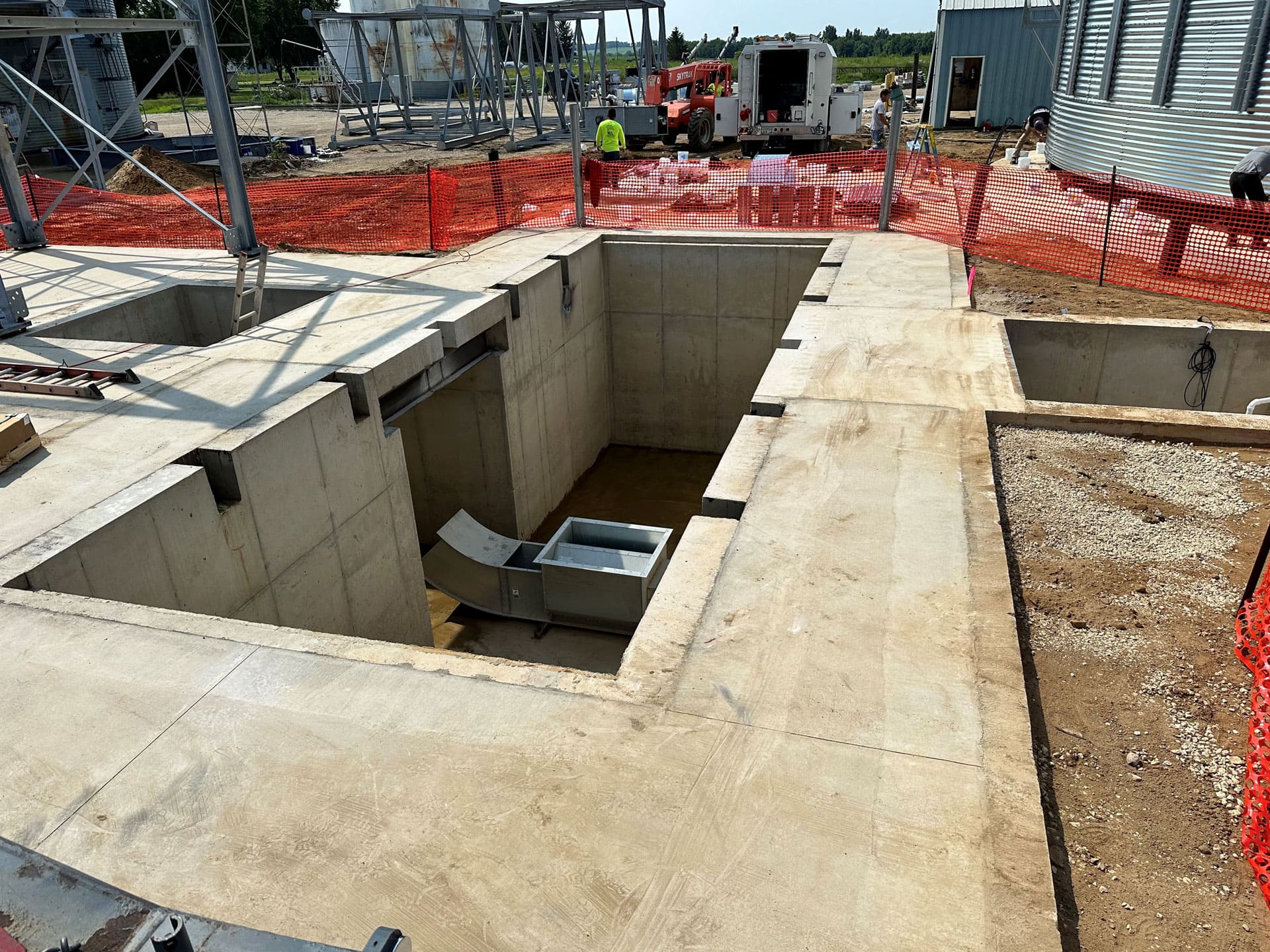

Our system uses a steel insert hopper which is set into a cement basement. The cement basement enables the equipment to last longer as it keeps the hopper out of soil, dirt, and water. This also allows maintenance and minor adjustments to be made easily. Enhancements to the basement structure can be added such as; maintenance access, reclaim conveyor, overhead structure, and building. The hopper, conveyor, and grate can be installed in less than a day if dirt and concrete work is done in advance.

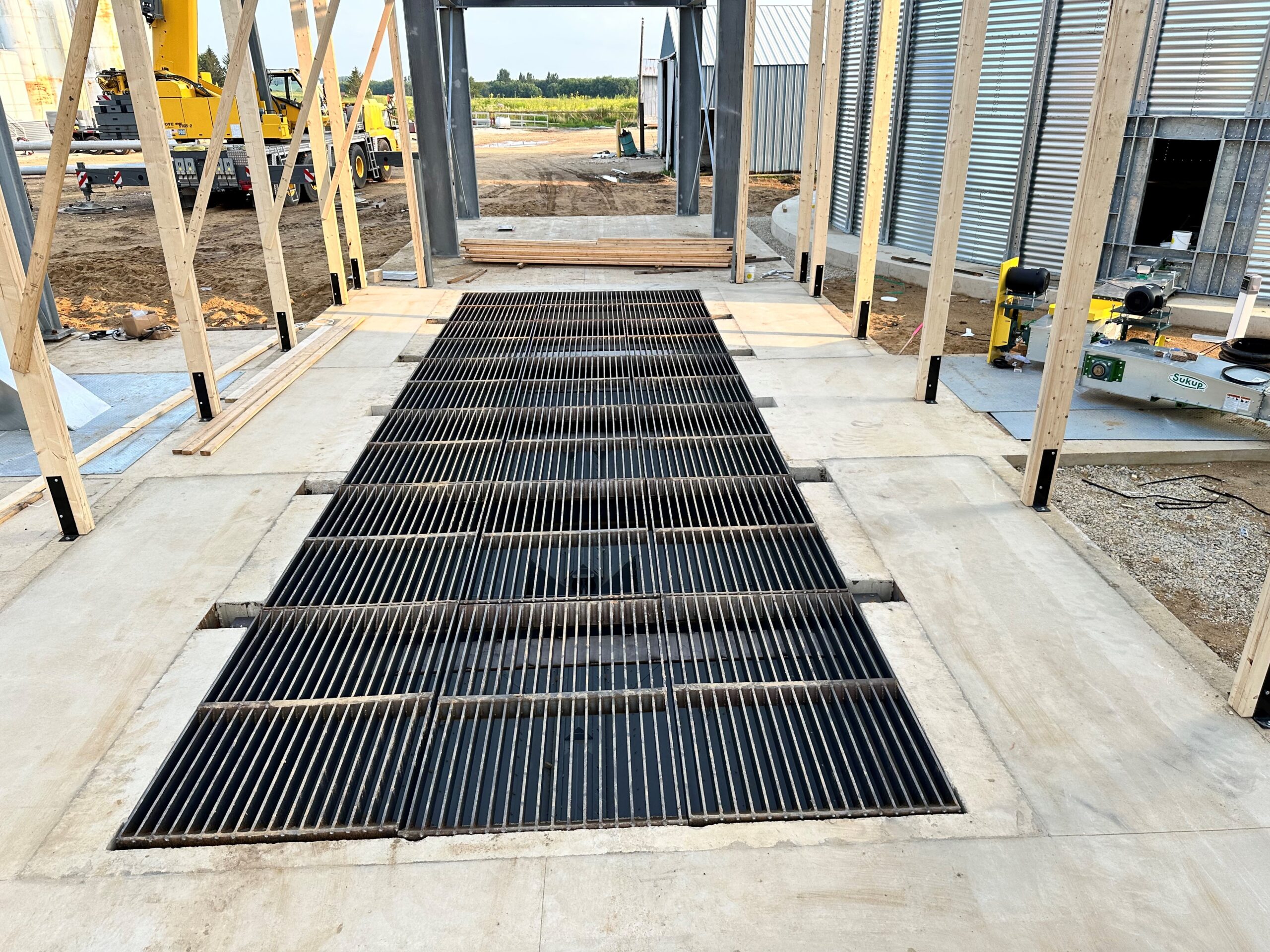

- Model 1030 – 10’ x 30’ grated area
- 1024 and 1036 Models also available
- Customizable to match the inlet section of your grain receiving conveyor
- 1100 + bushel capacity
- 2,500 – 20,000 bushel per hour capacity
- High quality pre-fabricated construction
- Sand blasted and durable epoxy painted
- Adjustable slide gates to control grain flow

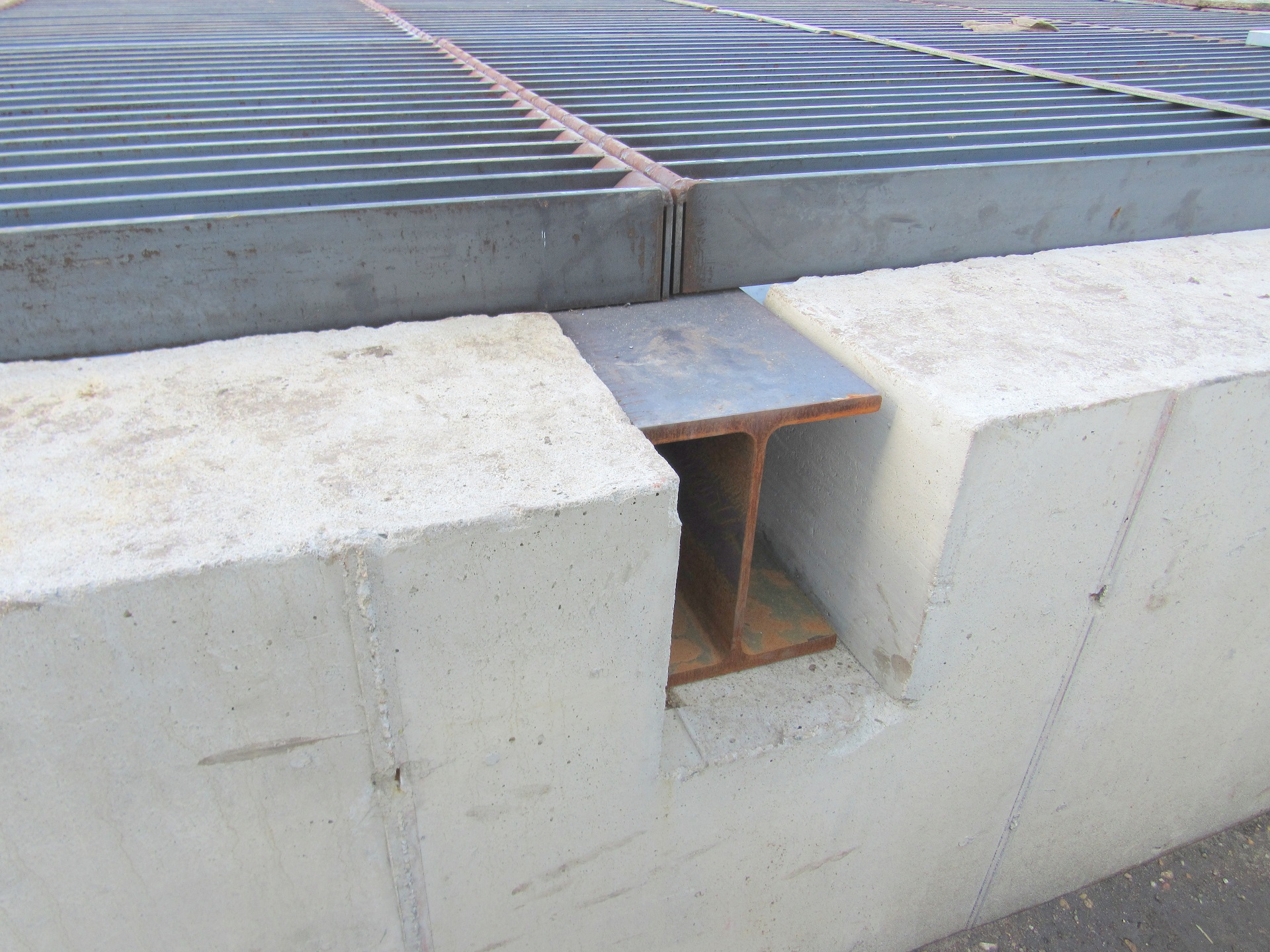

- Shed plates built into grates and beams keep grain from collecting in corners
- Low profile design allows the hopper, grates, and beams to be transported on one flatbed trailer
